180m Hydraulic Crawler Compact Mini Water Well Drilling Machine for Medium Scale Drilling

RCF180S Crawler Water Well Drilling Machine Product Overview

This RCF180S is a hydraulic rubber crawler-mounted mini water well drilling rig designed for small and medium-scale water well drilling projects. With a compact structure and integrated hydraulic system, the machine delivers stable performance across different geological conditions. Its lightweight design (2700 kg) allows easy transportation and flexible site relocation.

Product Specifications

Core Features

• High drilling depth and stable performance
  This borehole drilling rig can reach a maximum drilling depth of 180 meters with a matched hydraulic system and drilling tools, ensuring efficient and stable operation in various water well drilling projects.

• Strong torque and lifting capacity
  The rotary head provides up to 4600 N·m torque and 15 tons lifting force, delivering strong drilling performance for both soft soil and hard rock formations.

• Compatible with multiple drilling methods
  The water well drilling machine supports both mud pump drilling and air DTH drilling, making it suitable for a wide range of geological conditions and water borehole applications.

• Efficient rod handling system
  Equipped with 2-meter drill rods, the hydraulic drilling rig enables faster rod loading and unloading, reducing downtime and improving overall drilling efficiency.

• Reliable diesel power system
  Powered by a 77.3 kW Yuchai diesel engine, the rig ensures continuous and stable output for long working hours, while the energy-efficient hydraulic system helps reduce fuel consumption.

• Strong mobility and terrain adaptability
  Built on a rubber crawler chassis, the crawler mounted drilling rig performs well on rough, uneven, and remote terrain while maintaining stable working conditions during drilling operations.

• User-friendly hydraulic control system
  The ergonomic control panel allows operators to easily monitor and manage drilling operations, improving safety and reducing operational difficulty.

• Durable structure with low maintenance cost
  Designed for harsh working environments, the rig features a heavy-duty frame structure that ensures long service life and reduced maintenance requirements.

Application

This water well drilling rig is widely used for domestic water well drilling, agricultural irrigation wells, and general borehole drilling projects. It is suitable for residential water supply systems, rural development projects, and farmland irrigation, meeting the demand for reliable domestic water supply and groundwater extraction.

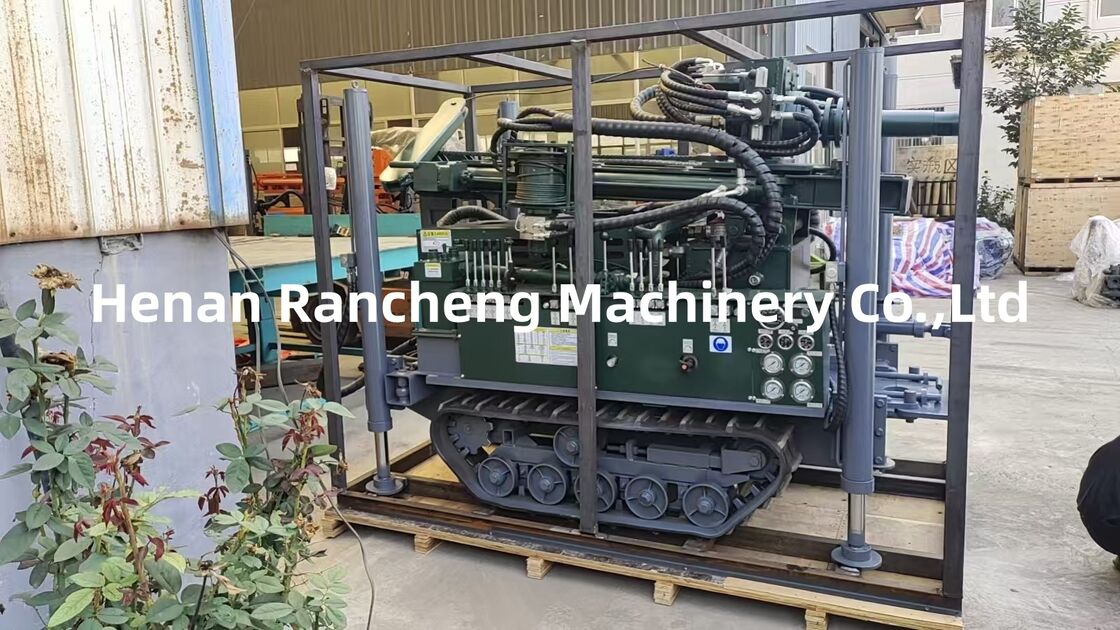

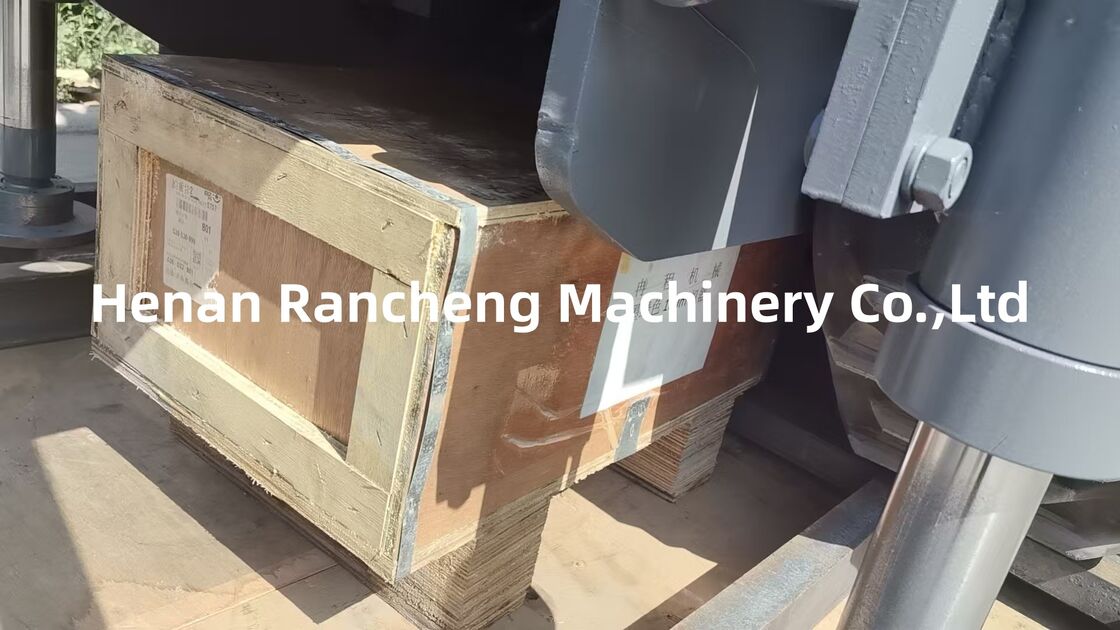

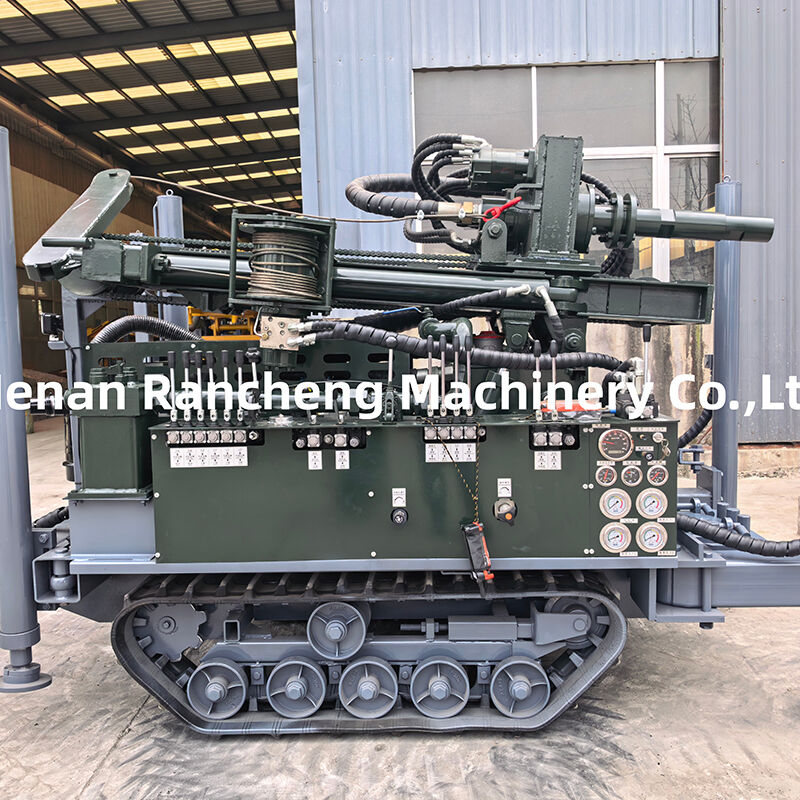

Product Image
