Name: RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF200C
Availability: InStock

Huis > producten > Boormachine voor waterputten >

RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales

deep hole crawler drilling rig

water well drilling machine with warranty

RCF200C crawler drilling rig

Plaats van herkomst:

China

Merknaam:

RanCheng

Certificering:

CE,ISO 9001:2000

Modelnummer:

RCF200C

Contacteer ons

Verzoek Een Citaat

Productgegevens

Model:

RCF200C

Pijplengte:

Boring diepte:

200m

Pijpdiameter:

76 mm/89 mm

Hefkracht:

15T

Dieselmotor:

58 kW Yuchai

Markeren:

deep hole crawler drilling rig

water well drilling machine with warranty

RCF200C crawler drilling rig

Betaling en verzendvoorwaarden

Min. bestelaantal

Prijs

Onderhandelbaar

Verpakking Details

Het kan worden verzonden in één 20-inch container

Levertijd

15 werkdagen

Betalingscondities

T/T, Western Union

Levering vermogen

100Sets per maand

Verwante producten

Video

Kleine hydraulische boorcilinder 160m diepte waterboor machine rupsband gemonteerde waterput boorinstallatie

Krijg Beste Prijs

Video

1000m diepte waterput boormachine 105mm - 800mm Dia 179KW diep put boormachine

Krijg Beste Prijs

Video

Hydraulisch pneumatisch waterputboringsapparaat 500 m boringdiepte 118 kW motor

Krijg Beste Prijs

Video

800m diepte waterput boorapparatuur 153KW motor 140mm - 500mm diameter

Krijg Beste Prijs

Contacteer ons

Contact nu

Productbeschrijving

RCF200C Deep Hole Crawler Drilling Rig Manufacturer Direct Sales

The RCF200C deep water well drilling rig is an independently developed product of our company. As a new-generation DTH drilling rig, it is equipped with enhanced air power to deliver a faster drilling speed and higher working efficiency. Adopting advanced hydraulic technology and the latest structural design, this drilling rig features low energy consumption, large rotary torque and flexible hole deflection. It is widely applicable for resource exploration, hydrological wells, civil water supply, agricultural irrigation and other drilling projects.

Manufactured with high-quality raw materials, the machine boasts a compact and exquisite structure. It ensures stable operation, low failure rate, excellent durability and superior cost performance. Verified by the market, our drilling rigs have gained widespread recognition and positive feedback from global customers.

Technical Specifications

Parameter	Specification
Model	RCF200C
Bore diameter (Hammer)	90-350mm
Bore depth	200m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	76mm/89mm
Pipe length	3m
Push force	4T
Lifting force	12T
Lifting speed	2.5m/min
Feeding speed	0.5-5m/min
Fast lifting speed	18m/min
Fast feeding speed	35m/min
Max torque of the rotary	3500-4800Nm
Rotary speed	45-70r/min
Mud Pump flow	250L/min (option)
High hydraulic leg	1.4m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension (L×W×H)	4000×1800×2300mm
Weight	5000Kg
Diesel engine	58KW Yuchai

Key Advantages

1. Powerful Performance, Exceptional Efficiency
Featuring a newly developed, proprietary down-the-hole (DTH) drilling configuration, this machine combines upgraded pneumatic power with advanced hydraulic technology. It boasts low energy consumption, high rotational torque, flexible hole positioning, and rapid drilling speeds, making it ideally suited for a wide range of engineering applications—including resource exploration, civil water wells, and agricultural irrigation.

2. Precision Engineering, Stable and Durable
Constructed from premium-grade raw materials, the machine features a compact and streamlined structure. It operates smoothly with a low failure rate; its robust chassis ensures exceptional durability, allowing for prolonged, continuous operation without prone to mechanical issues.

3. High Cost-Effectiveness, Excellent Market Reputation
Offering outstanding overall economic value and a superior price-performance ratio, this equipment has been rigorously field-tested across global markets. It has garnered widespread recognition and positive reviews from a vast base of satisfied customers.

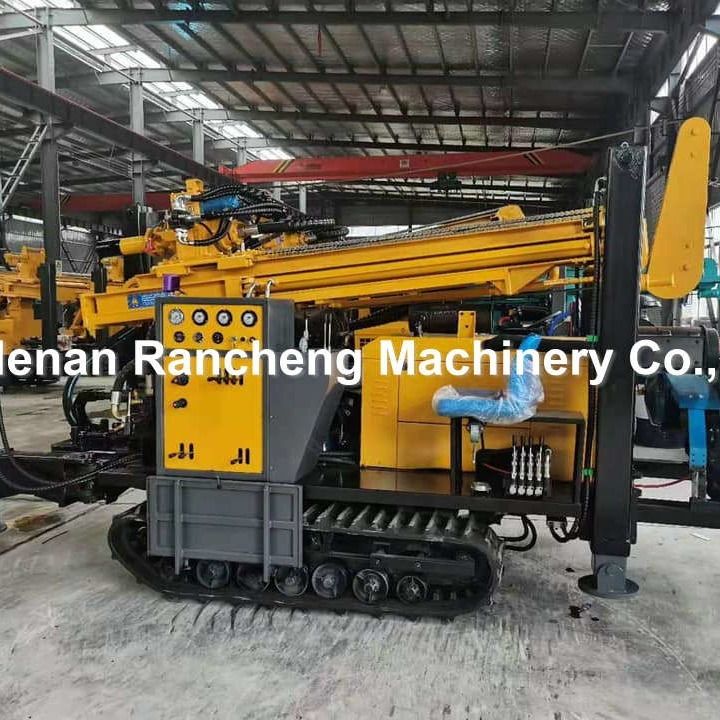

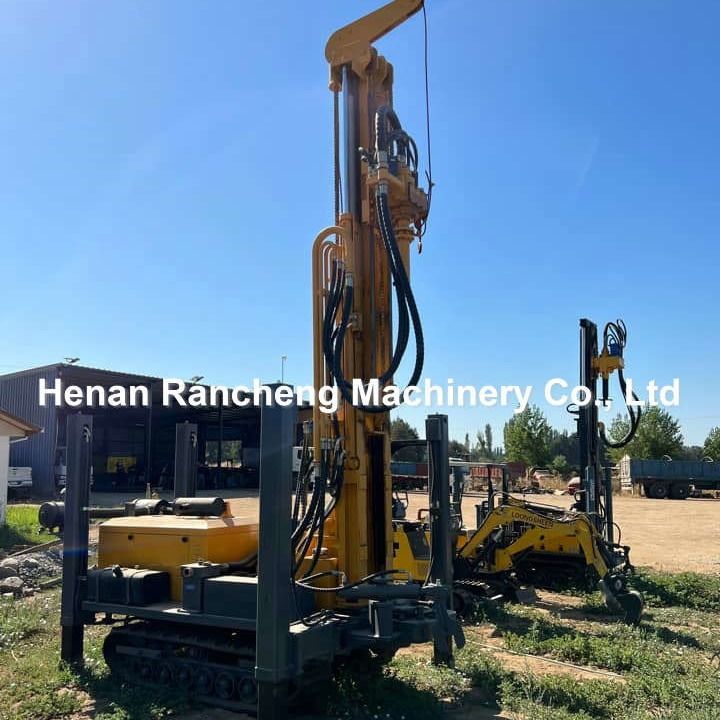

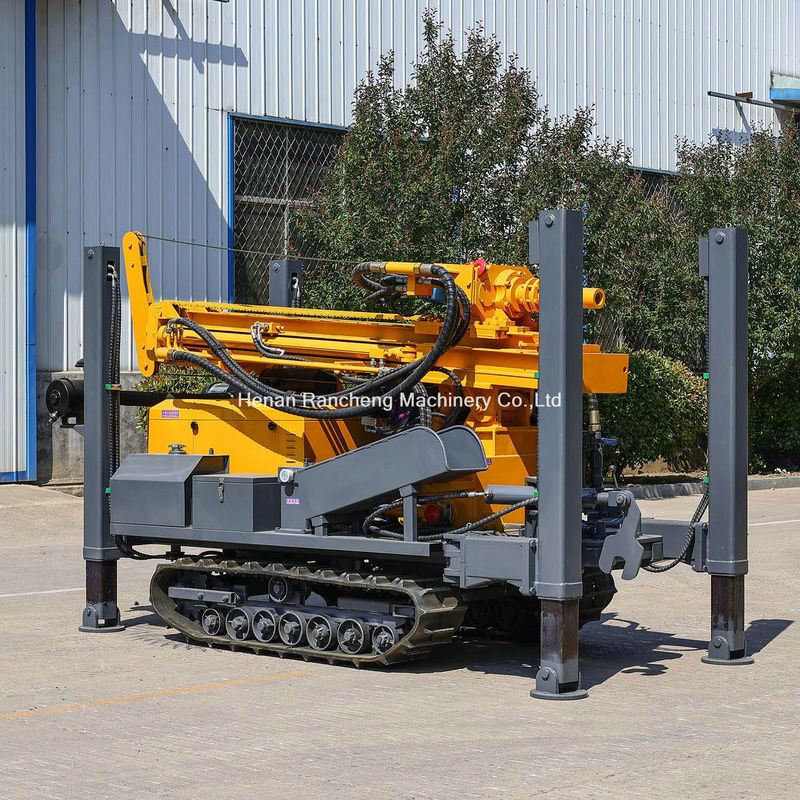

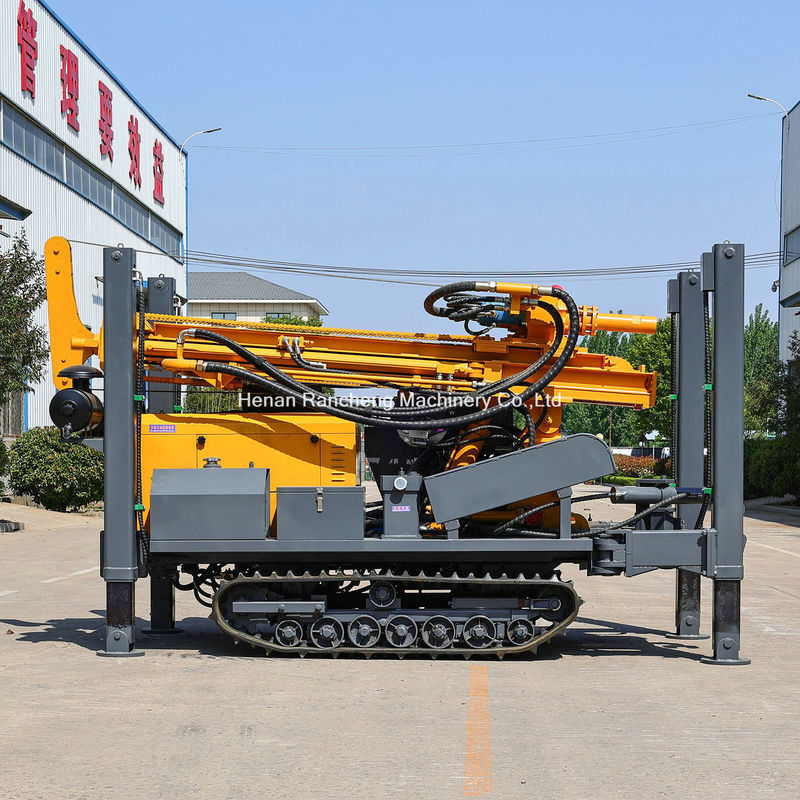

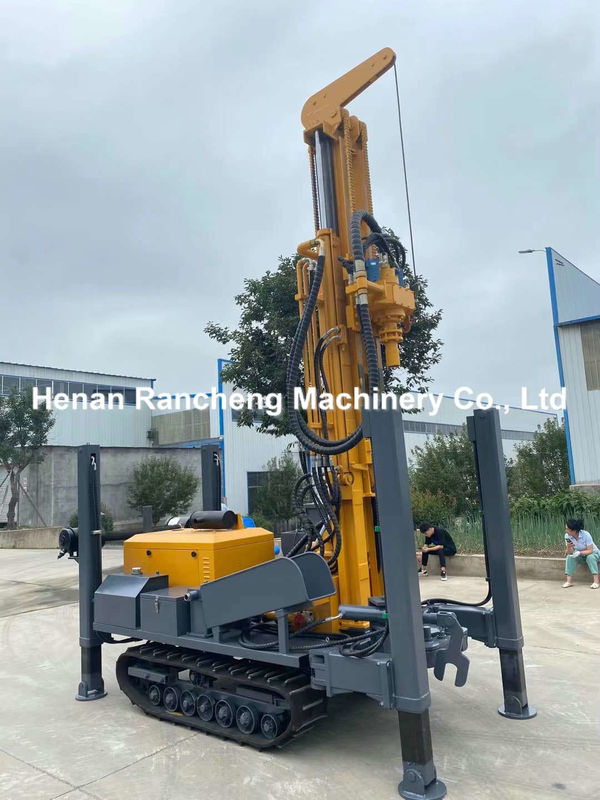

Product Images
