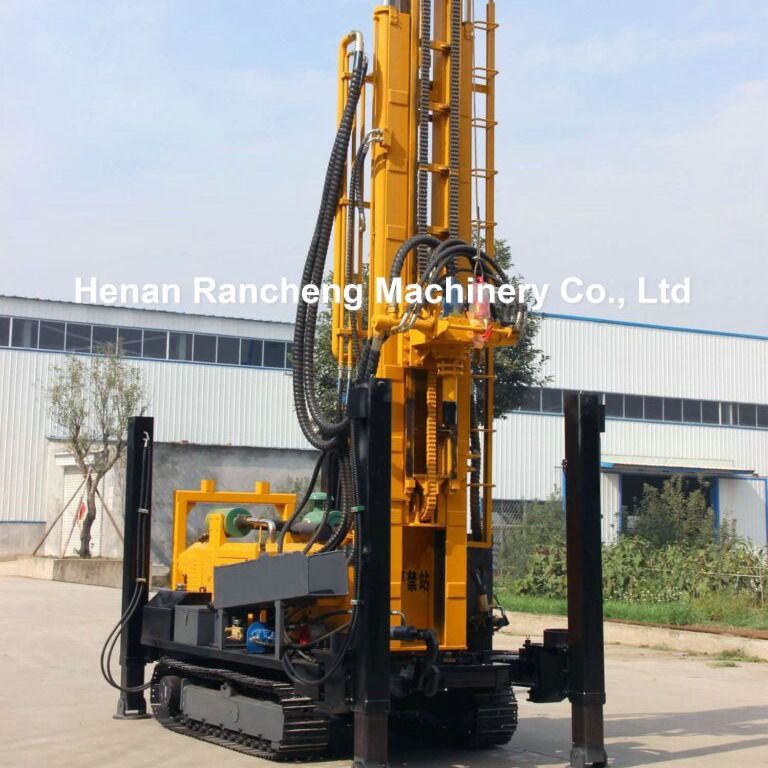

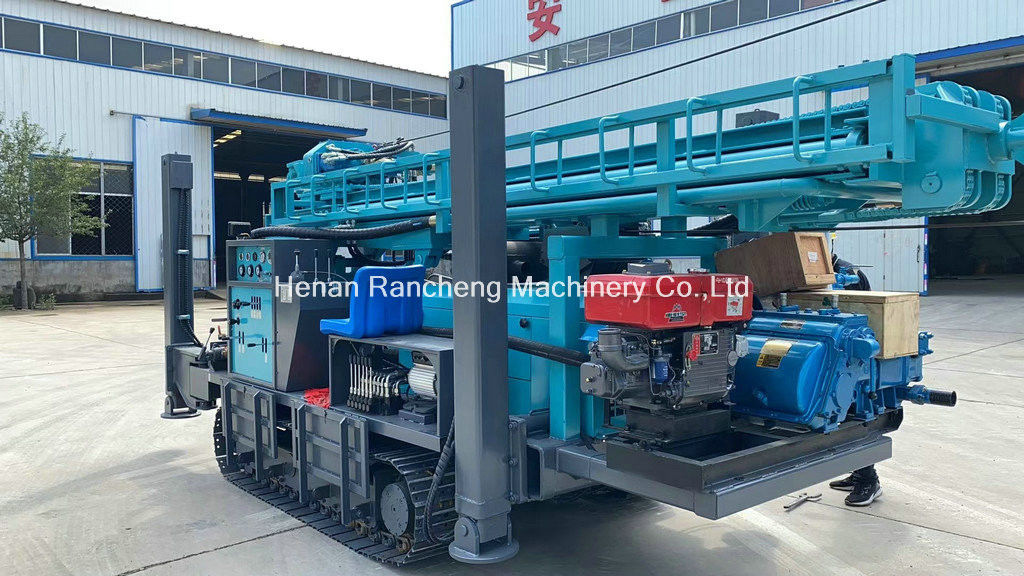

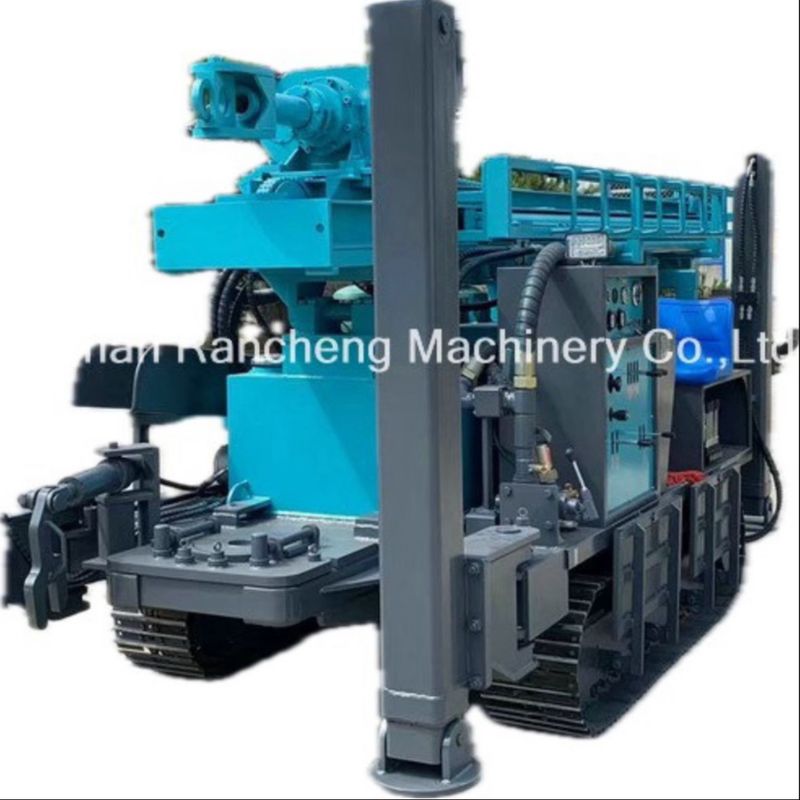

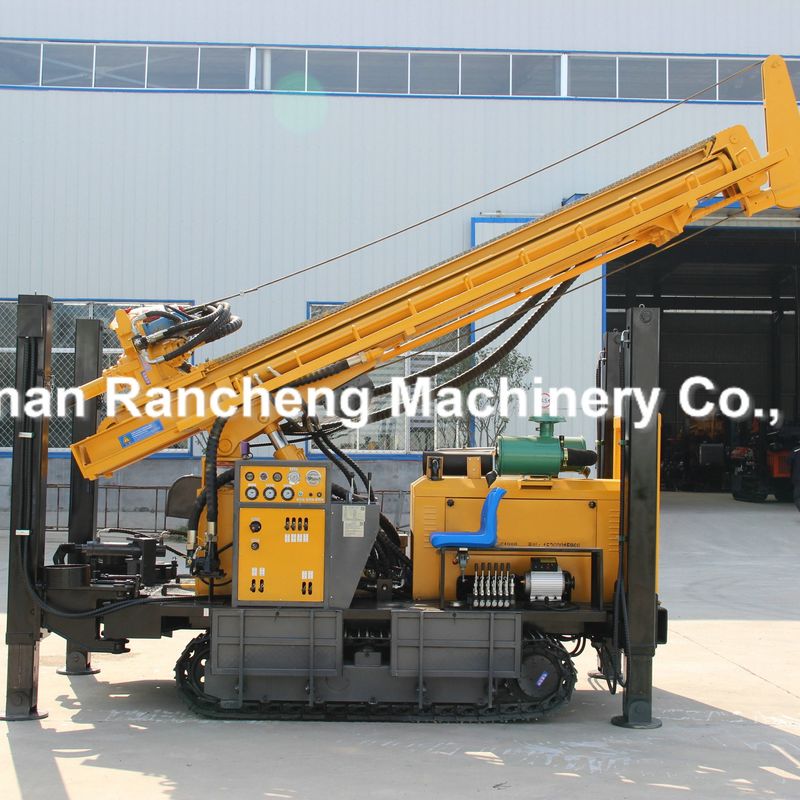

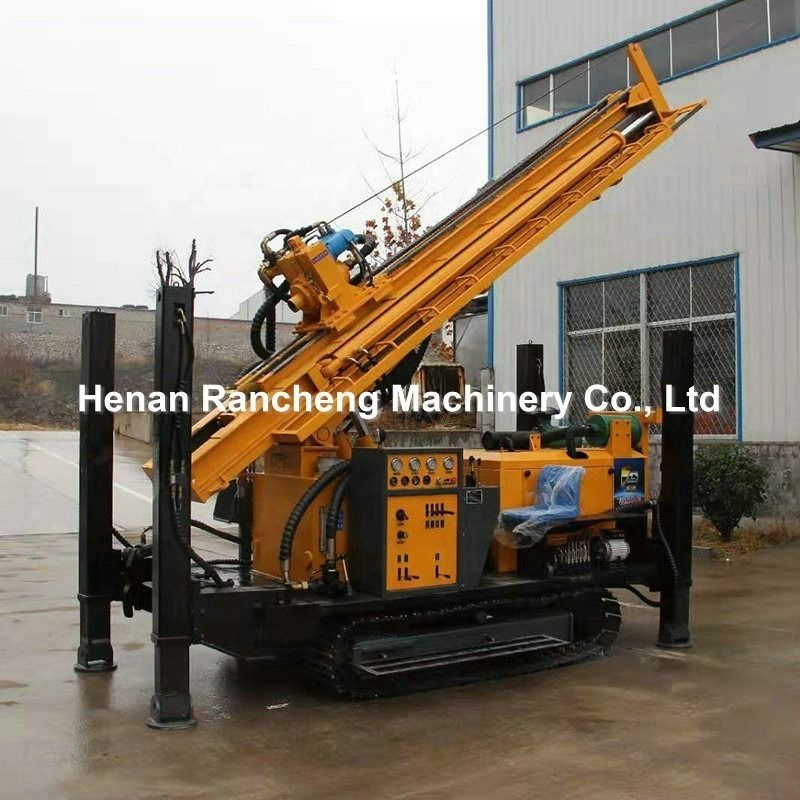

RCF350C Hydraulic Tracked Water Well Drilling Rig Mud Pump Air Compressor

Product Description

The RCF350C deep water well drilling rig is a new-generation model independently developed by our factory. Equipped with a high-power air supply system, it delivers faster drilling speeds and higher operational efficiency. The entire machine utilizes advanced full-hydraulic technology, featuring low energy consumption, high rotary torque, and convenient hole-positioning capabilities; it is capable of meeting the diverse drilling requirements of various projects, including civil drinking water wells, agricultural irrigation wells, and hydrological exploration.

1. Equipped with a crawler-type travel mechanism and built upon a specialized excavator chassis, it offers excellent off-road maneuverability and traction in muddy terrain. Its four sets of extended hydraulic outriggers enable self-loading and transport without the need for an external crane.

2. It supports a wide range of drilling processes—including DTH hammering, reverse circulation, mud circulation, and core sampling—and offers optional auxiliary equipment such as mud pumps, welding machines, and generators.

3. The core hydraulic components and critical parts are sourced from renowned brands, while the rig body is constructed from high-strength alloy materials, resulting in a low failure rate, exceptional durability, cost-effectiveness, and outstanding overall value.

4. Powered by a 91 kW Yuchai engine, the rig features a modular mast with a 6.6-meter stroke and a dual-cylinder lifting capacity of up to 24 tons, capable of hoisting 6-meter casing pipes. With fully hydraulic, steplessly adjustable controls for rotation speed, torque, and axial pressure, it offers flexible operation and hassle-free construction, earning unanimous recognition and high praise from a vast global clientele.

Technical parameters
