Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale

Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale

small hydraulic drilling rig

wheel type borehole machine

200m water drilling rig

Plaats van herkomst:

China

Merknaam:

RanCheng

Certificering:

CE, ISO 9001:2000

Modelnummer:

RCS200W

Contacteer ons
Verzoek Een Citaat
Productgegevens
Model:
RCS200W
Geologie geboord:
Alle soorten
Boordiepte:
200m
Boordiameter:
90-300 mm
Drill -systeem en werking:
Hydraulisch
Voor rock:
6-20F
Markeren:

small hydraulic drilling rig

,

wheel type borehole machine

,

200m water drilling rig

Betaling en verzendvoorwaarden
Min. bestelaantal
1
Prijs
USD6580-12000
Verpakking Details
Standaard verzending
Levertijd
10-15 werkdagen
Betalingscondities
T/T, Western Union
Levering vermogen
100sets per maand
Productbeschrijving

Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine For Sale

Product Description

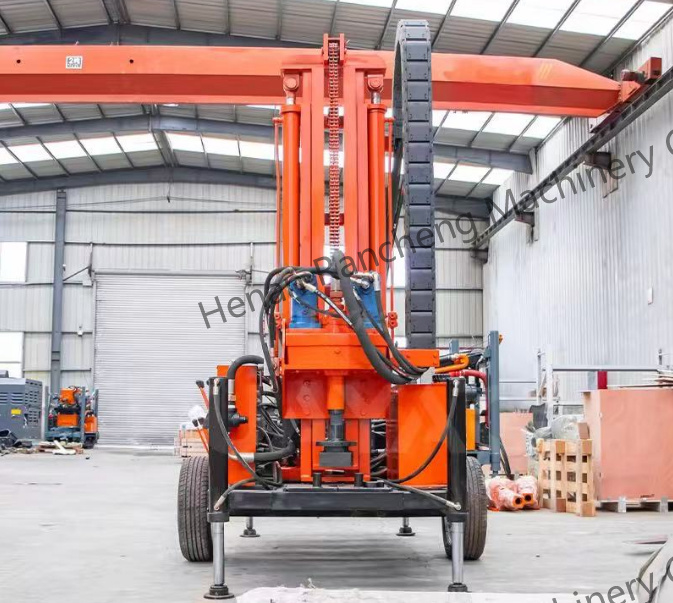

The RCS200W small water well drilling rig is mounted on a trailer. It uses advanced hydraulic technology, a top-mounted drive, and is powered by a mud pump and air compressor.



This compact, fully hydraulic drilling rig is designed for downhole and rotary drilling up to 200 meters. Lightweight, powerful and versatile, it uses air, foam or mud for rotation and drilling, depending on the conditions.



Technical data



Model RCS200W
Geology drilled All kinds
Drill depth 200 m
Drilling Diameter 90 -300mm
Drill system and operation Hydraulic
For rock 6-20F
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Rotary head
Rotation Torque 4000-5000N.m
Rotation speed 80-200rpm
Lifting capacity 14000KGS
Pull down capacity 4000KGS
DRILL PIPE
Drill pipe length 2 meter
Drill pipe diameter 60/76/89 mm
MUD PUMP
Flow capacity 160 liter/min
working pressure 1.3MPA
DIMENSIONS
Transport size 2300*1200*1700mm
Weight 2300KGS
Diesel engine
Power 45KW Weifang Hengtong



Application:

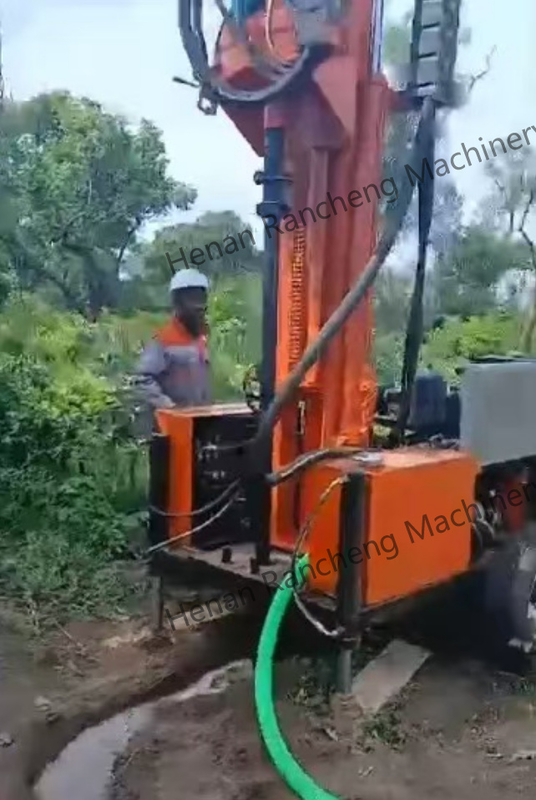

This hydraulic water well drilling machine is widely used in industrial and agriculture water project,farm irrigation well drilling ,home use well drilling ,geothermal well drilling ,inspect well and other exploration borehole drilling.




Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale 0



Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale 1



Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale 2



Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale 3



Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale 4



Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale 5
