350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

350m hydraulic water well drill rig

portable crawler drilling rig machine

diesel borehole drilling equipment

Plaats van herkomst:

CHINA

Merknaam:

RanCheng

Certificering:

CE, ISO 9001:2000

Modelnummer:

RCF350C

Contacteer ons
Verzoek Een Citaat
350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine
350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine
Productgegevens
Naam:
350m 450m 500m Hydraulische draaibare Diesel Boorgat Water Well boorinstallatie Apparatuur Portable
Model:
RCF350C
Boordiepte:
350 meter
Luchtverbruik:
17-36 m3/min
Luchtdruk:
1.7-3.5mpa
Afmeting ((L*W*H):
6000 × 2000 × 2550 mm
Markeren:

350m hydraulic water well drill rig

,

portable crawler drilling rig machine

,

diesel borehole drilling equipment

Betaling en verzendvoorwaarden
Min. bestelaantal
1
Prijs
USD29860-USD39860
Verpakking Details
Het kan worden verzonden door een 20 "container
Levertijd
10-15 werkdagen
Betalingscondities
T/T, Western Union
Levering vermogen
100sets per maand
Verwante producten
Goede prijs RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig online Video

RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig

Krijg Beste Prijs
Goede prijs 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine online Video

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

Krijg Beste Prijs
Goede prijs 680m crawler drilling Hydraulic water well drilling rig multi functional drilling equipment with 154KW cummins engine online Video

680m crawler drilling Hydraulic water well drilling rig multi functional drilling equipment with 154KW cummins engine

Krijg Beste Prijs
Goede prijs Multifunctional 800m Deep Hydraulic Crawler Drilling Machinery online Video

Multifunctional 800m Deep Hydraulic Crawler Drilling Machinery

Krijg Beste Prijs
Contacteer ons
Contact nu
Productbeschrijving

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

Product Description


The RCF350C deepwater well drilling rig is a product independently developed by our company.
Made of high-quality materials and featuring a stylish and compact design, our rig boasts higher efficiency, lower failure rates, greater cost-effectiveness and durability, and offers a superior overall cost-effectiveness. Our water well drilling rigs have been well-recognized in the market and received positive feedback from our customers.



Our water well drilling rigs utilize the latest models and advanced hydraulic technology, offering low energy consumption, high torque, and convenient well positioning. The combination of a new-generation down-the-hole hammer and increased pneumatic power significantly increases drilling speed.



Technical Parameters

Model RCF350C
Bore diameter(Hammer) 140-350mm
Bore depth 350m
Air consumption 17-35m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 6200-8500Nm
Rotary speed 55-115r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2000×2550mm
Weight 8600Kg
Diesel engine 91KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling
Operating system Full hydraulic operation


Application



The water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.



After service

We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

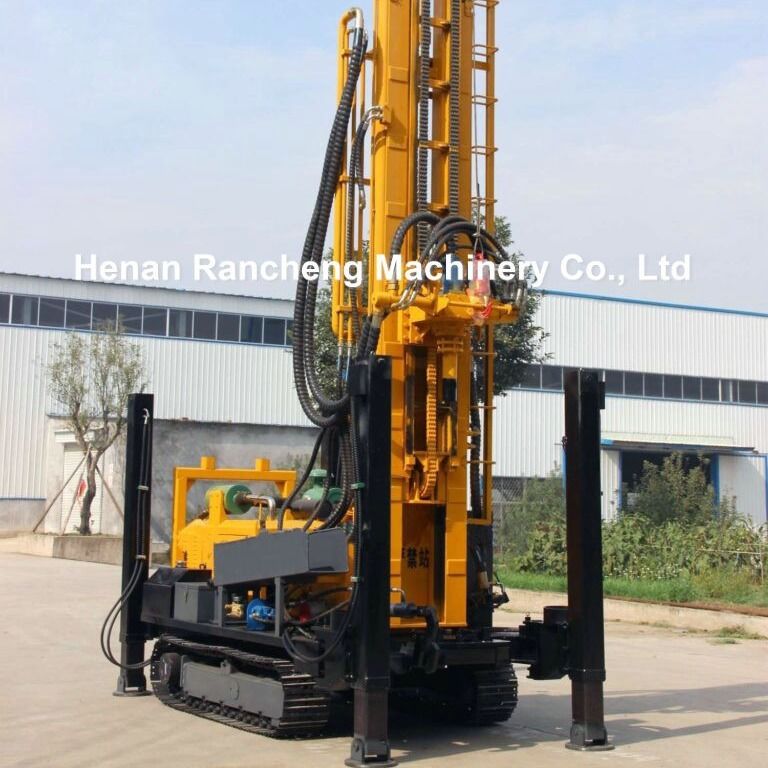

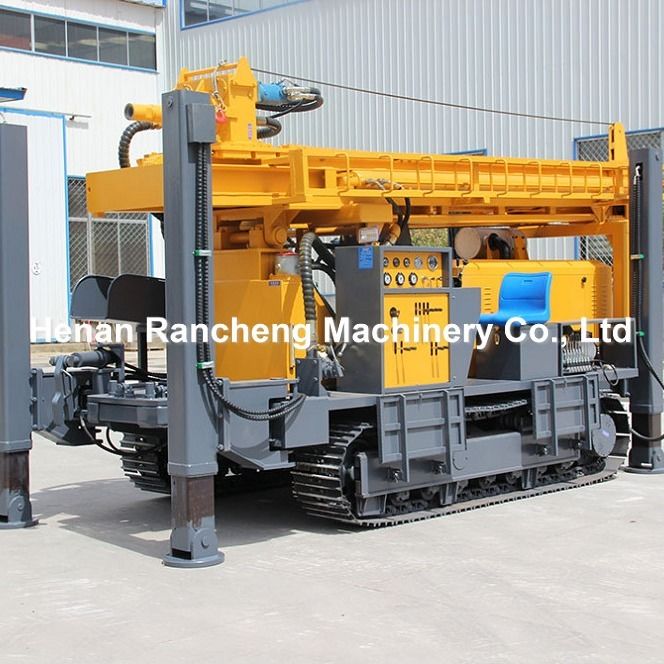

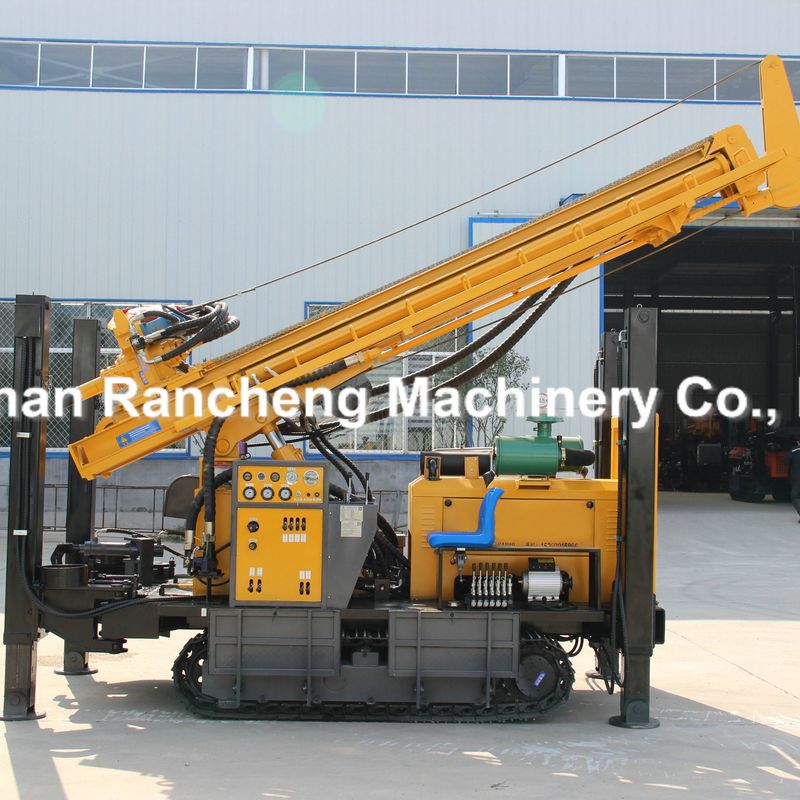

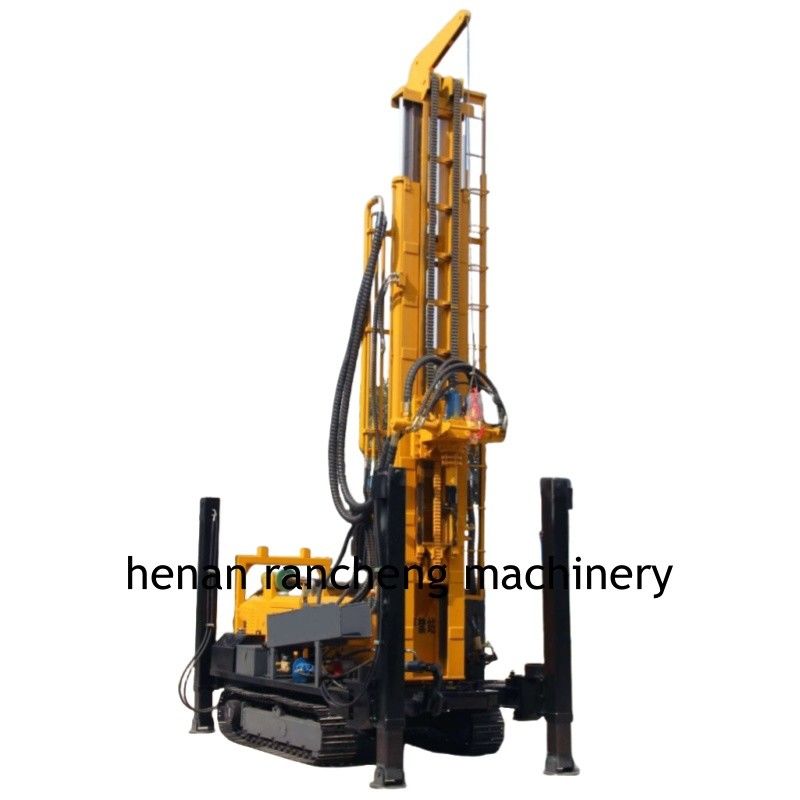

Machine picture display

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 0350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 1
350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 2
350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 3
350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine 4
