Name: 260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF260W
Availability: InStock

Huis > producten > Boringsmachine >

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment

260m depth hydraulic water well drilling machine

fully automatic borehole drilling equipment

wheel-mounted water well drilling machine

Plaats van herkomst:

China

Merknaam:

RanCheng

Certificering:

CE, ISO 9001:2000

Modelnummer:

RCF260W

Contacteer ons

Verzoek Een Citaat

Productgegevens

naam:

Hydraulisch wiel gemonteerd waterputboormachine

Model:

RCF260W

Boringsdiameter (hamer):

90-350 mm

Boordiepte:

260m

Luchtverbruik:

17-35 m3/min

Luchtdruk:

1.7-3.0Mpa

Markeren:

260m depth hydraulic water well drilling machine

fully automatic borehole drilling equipment

wheel-mounted water well drilling machine

Betaling en verzendvoorwaarden

Min. bestelaantal

Prijs

Onderhandelbaar

Verpakking Details

Het kan worden verzonden door een 20 "container

Levertijd

10-15 werkdagen

Betalingscondities

T/T, Western Union

Levering vermogen

100sets per maand

Verwante producten

Video

Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale

Krijg Beste Prijs

Video

RCF300WT Hydraulic Tractor Mounted Water Well Drilling Machine 100HP

Krijg Beste Prijs

Video

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment

Krijg Beste Prijs

Video

Hoge efficiëntie vierwiel aanhangwagen gemonteerde boorgat boringsmachine 220m diepte krachtige 65 kW motor

Krijg Beste Prijs

Contacteer ons

Contact nu

Productbeschrijving

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment

Machine Introduction

The RCF260W wheeled water well drill rig is lightweight, efficient, and versatile. It is primarily suitable for industrial and civil drilling, as well as geothermal drilling. Its compact design, fast drive, flexible maneuverability, and wide range of applications make it an ideal choice for water supply in mountainous areas and rock formations.

Our rigs are manufactured from high-quality materials and feature a modern, compact design, which improves efficiency, reduces failure rates, and offers excellent value for money. Thanks to positive customer feedback, our water well drill rigs have gained widespread market recognition.

This versatile water well drill rig can be used with an air compressor, a mud pump, or even standalone for dry hydraulic drilling. It is suitable not only for water well drilling, but also for all porous formation conditions.

Technical Parameters

Bore diameter(hammer)	90-350mm
Bore depth	260m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Push force	4T
Lifting force	15T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	4000-5300Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.5T
Mud Pump flow	20L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.85×2.3M
Weight	6500Kg
Diesel engine	70KW engine

Machine Application

This Water drilling machine is widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.

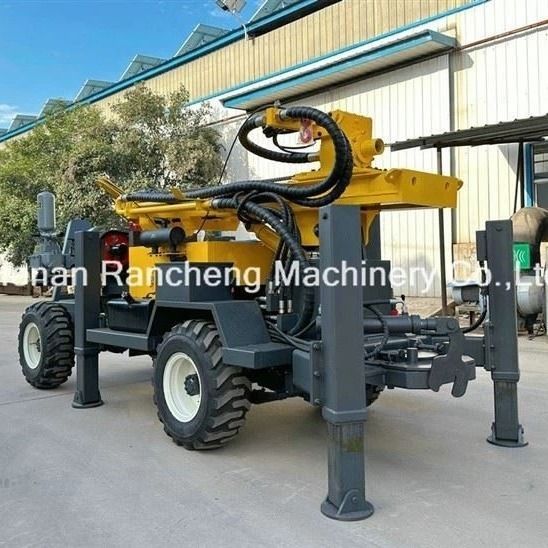

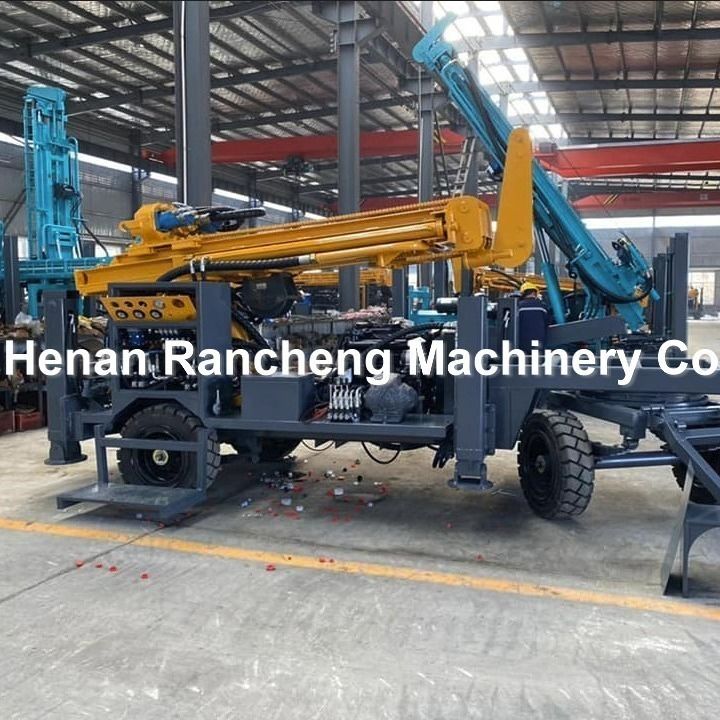

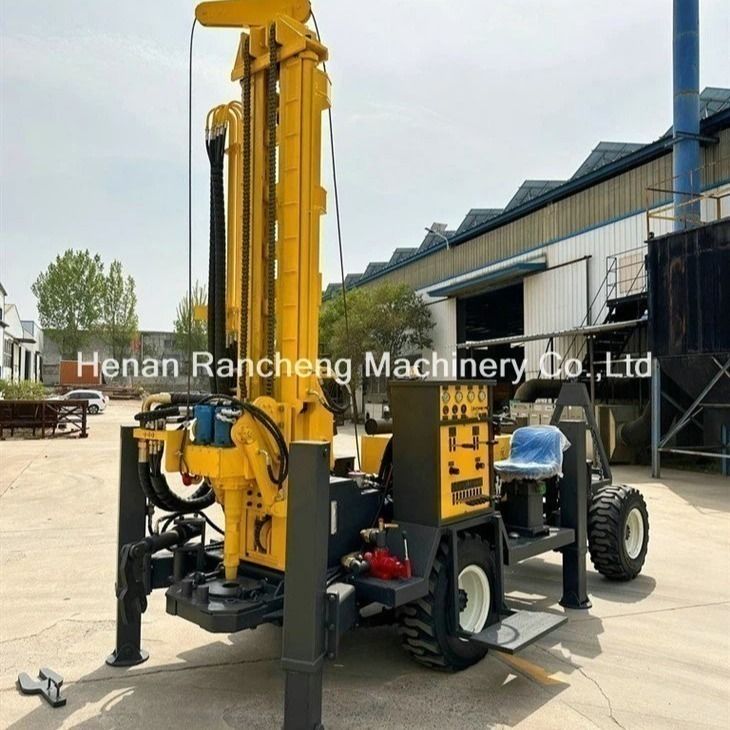

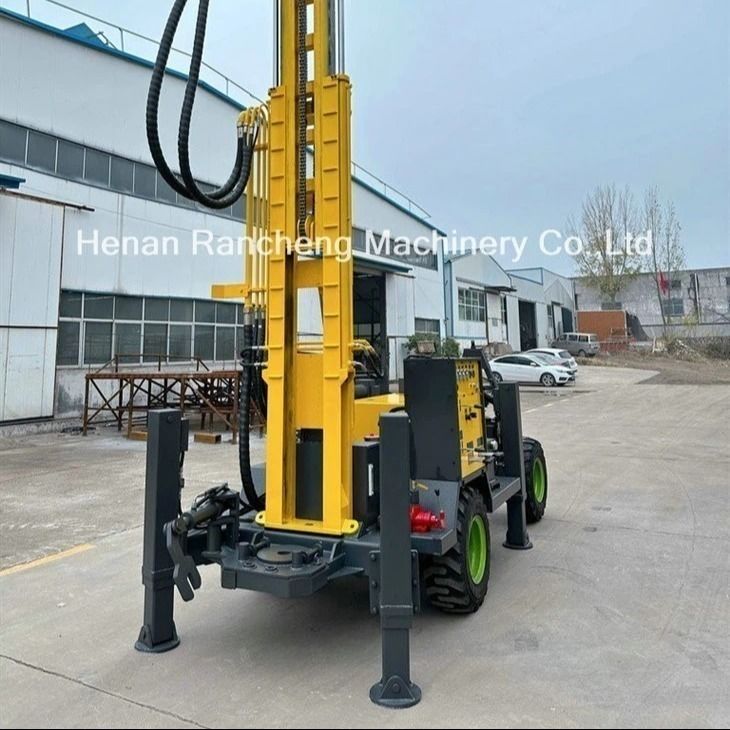

Machine Pictures

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment 0
