RCF450C Crawler Water Well Drill Rig Machine 450m Deep Hole Drilling For Mining, Reliable & Efficient

RCF450C Crawler Water Well Drill Rig Machine 450m Deep Hole Drilling For Mining, Reliable & Efficient

RCF450C crawler water well drill

450m deep hole drilling rig

mining water well drilling machine

Plaats van herkomst:

China

Merknaam:

RanCheng

Certificering:

CE, ISO 9001:2000

Modelnummer:

RCF450C

Contacteer ons
Verzoek Een Citaat
Productgegevens
naam:
RCF40C multifunctionele boormachine
Boordiepte:
450m
Maximaal koppel van de draaibank:
7000-9500Nm
Rotatiesnelheid:
50-135r/min
Liftvermogen:
2T
Dieselmotor:
110KW Yuchai motor 6 cilinders
Boringswijze:
Boringen met luchtcompressor of booringen met modderpomp
Markeren:

RCF450C crawler water well drill

,

450m deep hole drilling rig

,

mining water well drilling machine

Betaling en verzendvoorwaarden
Min. bestelaantal
1
Prijs
USD34860
Verpakking Details
Het kan worden verzonden door een 20 "container
Levertijd
10-15 werkdagen
Betalingscondities
T/T, Western Union
Levering vermogen
100 stuks per maand
Productbeschrijving

RCF450C Crawler Water Well Drill Rig Machine 450m Deep Hole Drilling For Mining, Reliable & Efficient



Machine Introduction



RCF450C deep water well drilling rig is a product independently developed by our company. This new generation of down-the-hole hammer combined with greater pneumatic power plays an important role in increasing drilling speed. Made of high-quality materials and stylish and compact design, our drilling rigs are more efficient, have lower failure rates, are more economical and durable, and have a higher overall cost-effectiveness. Our water well drilling rigs have been actually recognized by the market and have received positive feedback from our customers.



Technical Parameters



The weight(T) 9.4 Drill pipe diameter(mm) Φ89 Φ102
The hole diameter(mm) 140-350 Drill pipe length(m) 1.5m 2.0m 3.0m 6.0m
Drilling depth(m) 450 Rig lifting force(T) 25
One-time advance length(m) 6.6 Rapid rise speed(m/min) 20
Walking speed(km/h) 2.5 Fast feeding speed(m/min) 40
Climbing angles(Max.) 30 Width of loading(m) 2.8
Equipped capacitor(kw) 103 Hoisting force of winch(T) 2
Using air pressure(MPA) 1.7-3.5 Swing torque(N.m) 7000-9500
Air consumption(m³/min) 17-36 Dimension(mm) 5950×2100×2600
Swing speed(rpm) 50-135 Equipped with hammer Medium and high wind pressure series
The penetration efficiency(m/h) 15-35 High leg stroke(m) 1.6
The engine brand Weichai engine ( National III )



Application



Our water well drilling rigs adopt the latest models and advanced hydraulic technology, with the characteristics of low energy consumption, high torque, and convenient well position steering. They are mainly used for drilling in resource exploration, hydrological wells, civil water wells, agricultural irrigation and other projects.



Our Service



In terms of pre - sales service, we are not just selling products, but becoming trusted advisors and powerful assistants to our customers to ensure they make informed investment decisions. We offer a number of services, including assisting customers in selecting equipment models that suit their needs, custom designing and manufacturing products according to customers' special requirements, and providing customers with comprehensive technician training to ensure they can make the most of our equipment.



In terms of in - sales service, we are committed to providing customers with all-round support. We promise to conduct pre - acceptance before shipment to ensure product quality meets customer expectations. In addition, we actively assist customers in formulating solutions to solve any problems they may encounter during use and ensure that their projects proceed smoothly.



In terms of after - sales service, we always provide customers with continuous support with a thoughtful attitude to minimize their worries. We provide comprehensive after - sales service, and professional engineers can repair machinery for customers at any time at home and abroad to ensure the stable operation of the equipment. We provide 24 - hour technical support via email to answer customer questions and provide assistance in a timely manner. In addition, we provide other necessary technical services to ensure that our customers' needs are fully met.

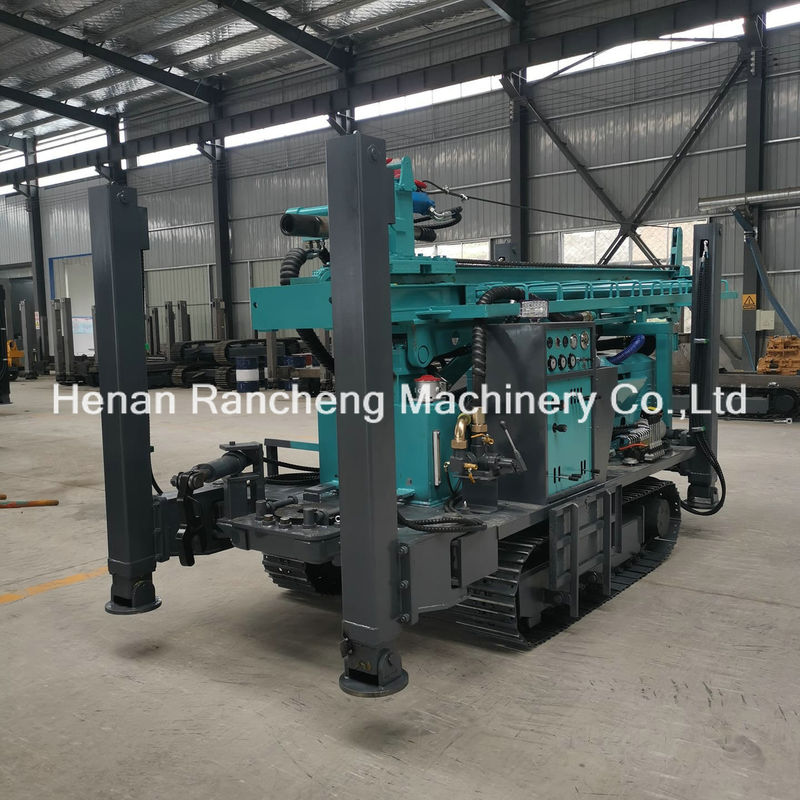

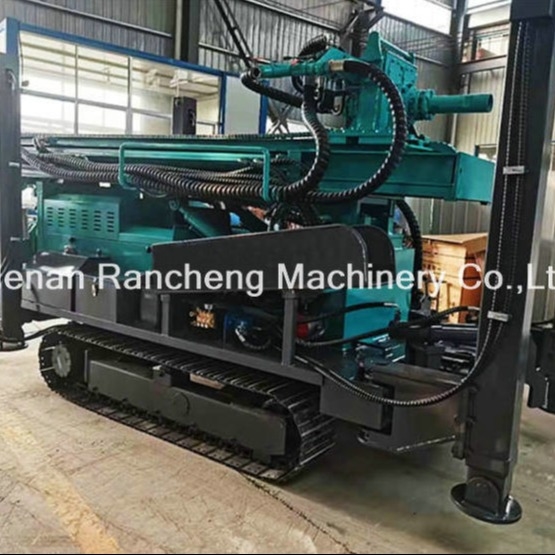

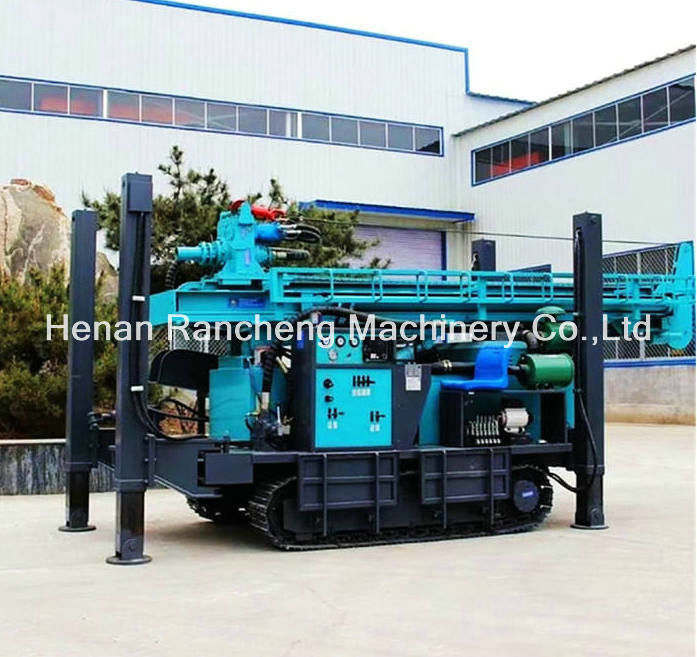

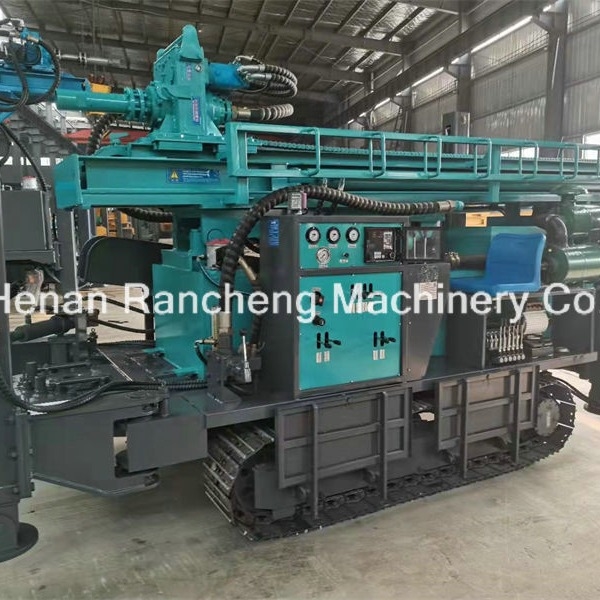

Machine Pictures



RCF450C Crawler Water Well Drill Rig Machine 450m Deep Hole Drilling For Mining, Reliable & Efficient 0RCF450C Crawler Water Well Drill Rig Machine 450m Deep Hole Drilling For Mining, Reliable & Efficient 1RCF450C Crawler Water Well Drill Rig Machine 450m Deep Hole Drilling For Mining, Reliable & Efficient 2

RCF450C Crawler Water Well Drill Rig Machine 450m Deep Hole Drilling For Mining, Reliable & Efficient 3
